Overview of Profinet
Product overview > (Hardware) Socket trays > Profinet

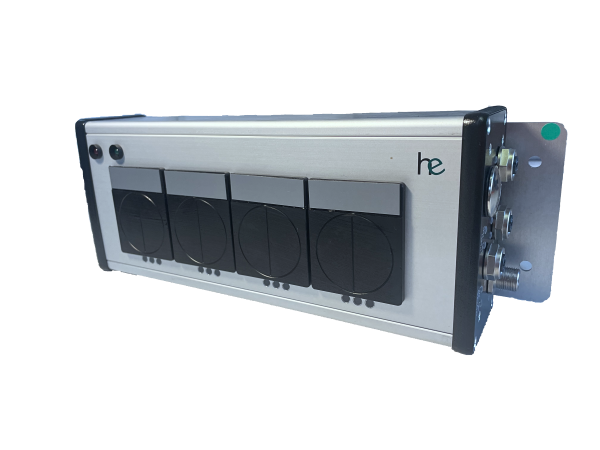

S14-PN2P
MSTKN-H-S14-HM-PN2P-M12
The 4-slots MSTKN socket tray was developed for use in industrial environments. It can be used in conjunction with all common screw systems and controls. Depending on the version selected, it is connected to the respective screw system via a 25-pin DSUB plug connector or a coded M12 round plug connector. The robust aluminium housing can withstand even heavy loads in the workplace. The holder has an interesting bus system, so that each main module can be operated with several expansion modules.
For further information:

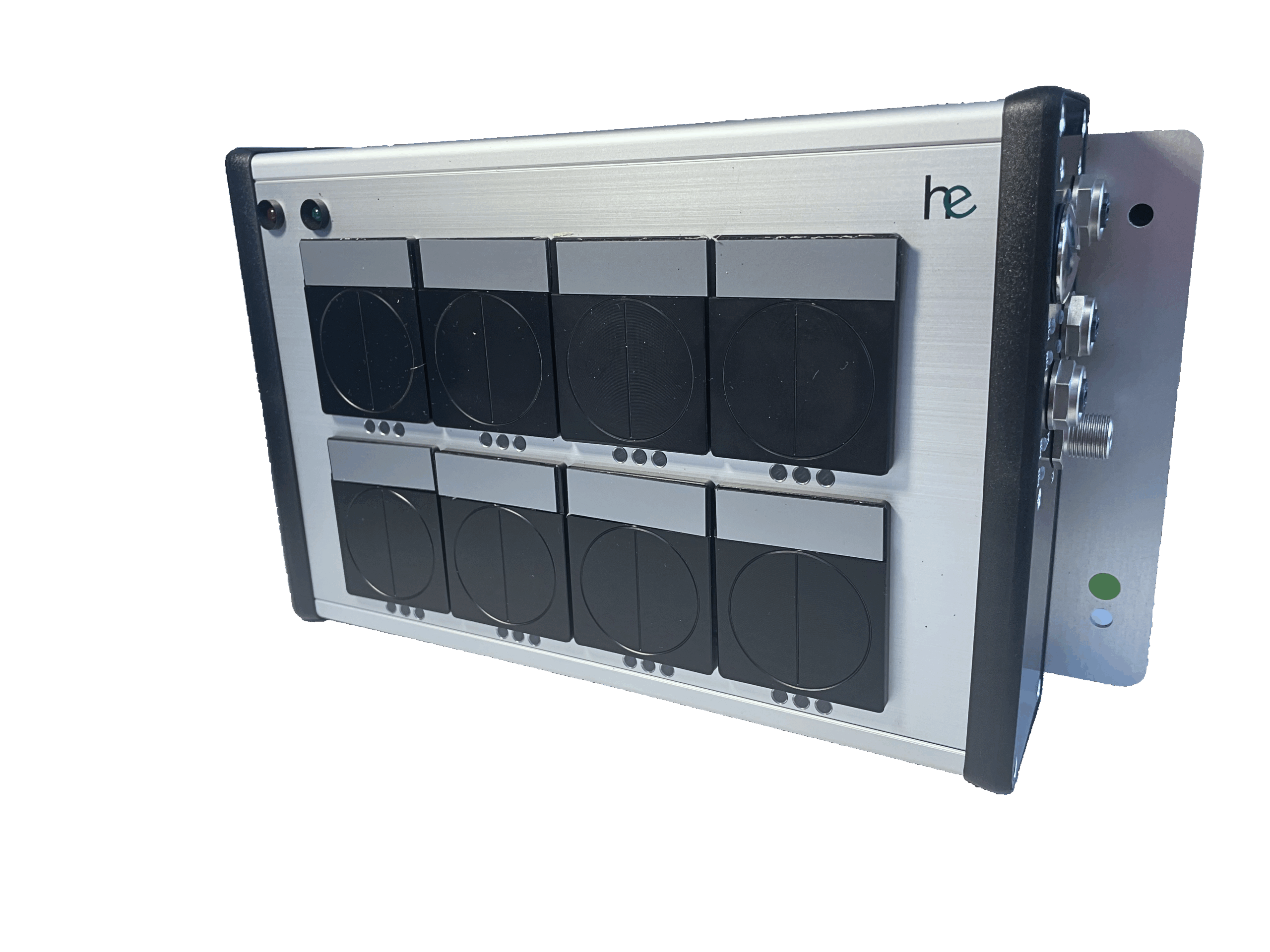

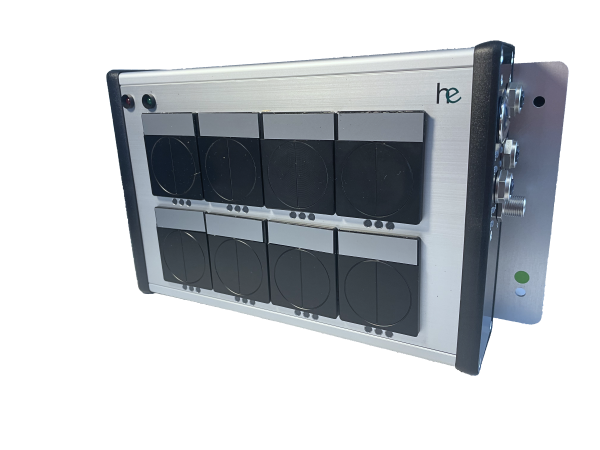

S24-PN2P
MSTKN-H-S24-HM-PN2P-M12
The 8-slots MSTKN socket tray was developed for use in industrial environments. It can be used in conjunction with all common screw systems and controls. Depending on the version selected, it is connected to the respective screwdriving system via a 25-pin DSUB plug connector or a coded M12 round plug connector. The robust aluminium housing can withstand even heavy loads in the workplace. The magazine has an interesting bus system, so that each main module can be operated with several expansion modules.
For further information:

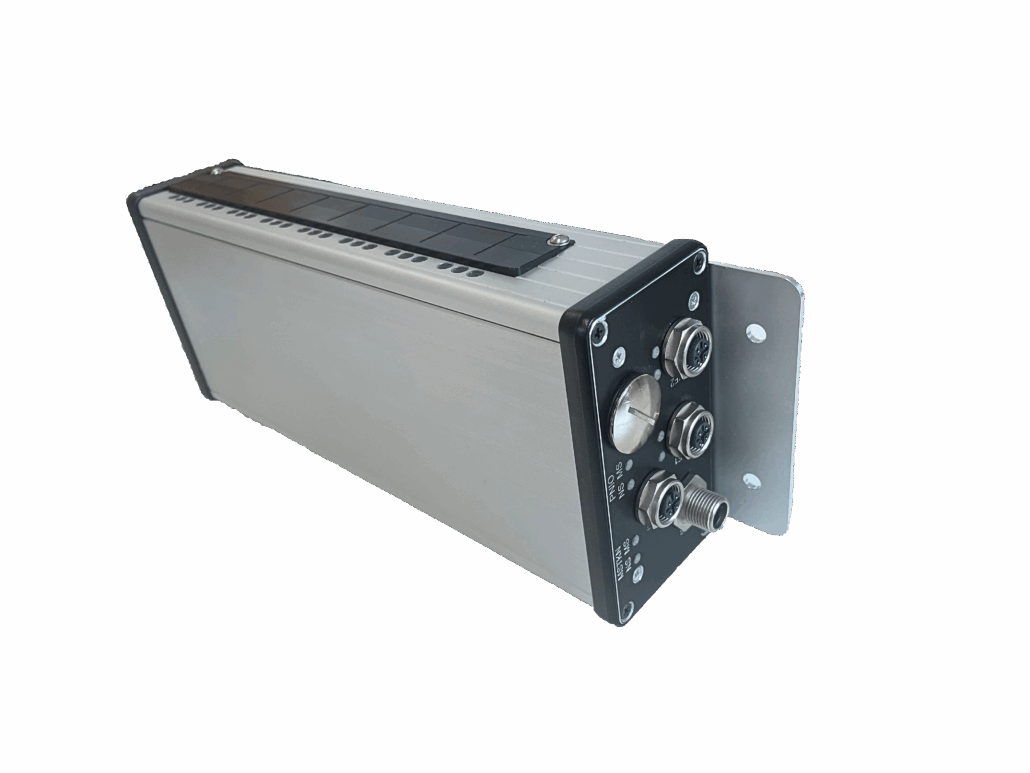

T18-PN2P
MSTKN-H-T18-HM-PN2P-M12
The T18 MSTKN socket tray was developed for use in industrial environments. It can be used in conjunction with all common screw systems and controls. Depending on the version selected, it is connected to the respective screwdriving system via a 25-pin DSUB plug connector or a coded M12 round plug connector. The robust aluminium housing can withstand even heavy loads in the workplace. The magazine has an interesting bus system, so that each main module can be operated with several expansion modules.
For further information:

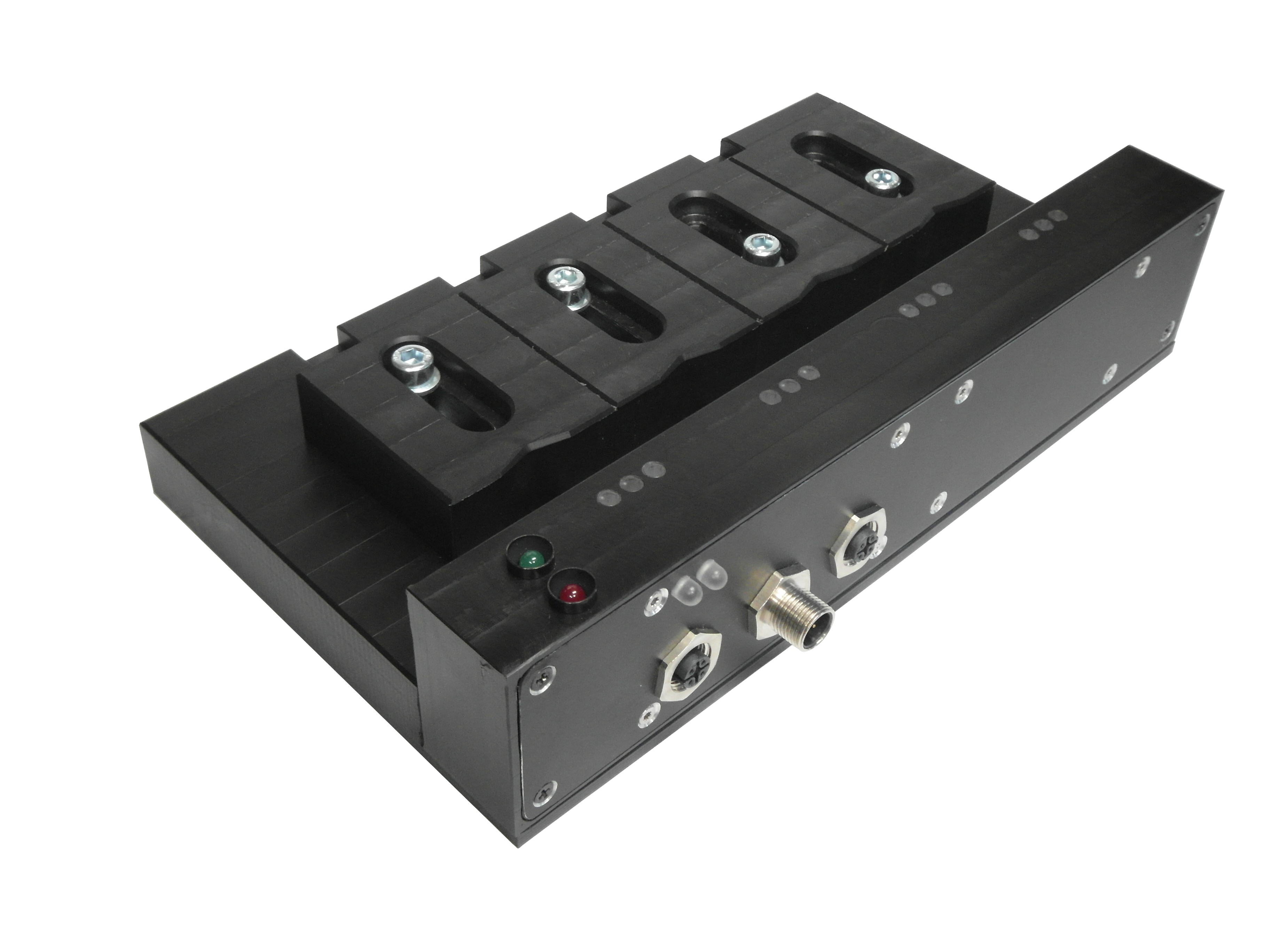

P14-PN2P
MSTKN-P-P14-HM-PN2P-M12
Der Prismenschieber Stecknussköcher wurde für den Einsatz in industrieller Umgebung entwickelt. Er ist in Verbindung mit allen gängigen Schraubsystemen und Steuerungen einsetzbar. Die Anbindung an das jeweilige Schraubsystem erfolgt, abhängig von der gewählten Variante, über einen 25poligen DSUB Steckverbinder oder einen kodierten M12 Rundsteckverbinder. Das robuste Aluminiumgehäuse verzeiht auch härtere Belastungen am Arbeitsplatz. Der Köcher verfügt über ein interes Bussystem, so dass jedes Hauptmodul mit mehreren Erweiterungsmodulen betrieben werden kann.
For further information:
Available versions
Socket Trays |
|
| type | Description |
| Main module | 24V EA Parallel interface |
| Main module | 24V EA parallel interface, Open Protocol variant |
| Main module | Profinet slave fieldbus interface |
| Main module | Profibus slave fieldbus interface |
| Main module | Ethernet/IP slave fieldbus interface |
| Main module | EtherCAT fieldbus interface |
| extension module | Modbus slave fieldbus interface |
Oder information
Please order by email: contact@haller-erne.de
MSTKN main module Profinet |
||
| Item | Description | item number |
| MSTKN-H-S14-HM-PN2P-M12 | 4-slots, 1-row, socket size up to 35mm | 22342 |
| MSTKN-H-S24-HM-PN2P-M12 | 8-slots, 2-row, socket size up to 35mm | 22357 |
| MSTKN-H-S25-HM-PN2P-M12 | 10-slots, 2-row, socket size up to 35mm | 22364 |
| MSTKN-H-T18-HM-PN2P-M12 | 8-slots, 1-row, socket size up to 18mm | 22339 |
| MSTKN-P-P14-HM-PN2P-M12 | 4-slots, socket size up to 48mm | 22330 |
Cable
MSTKN cable for Profinet and Ethernet |
||
| Item | Description | item number |
| Cable MSTKN Profinet / Ethernet Standard | M12M ↔ M12M / D-coded / 4 p. L = 0,5 m | 111350 |
| Cable MSTKN Profinet / Ethernet Standard | M12M ↔ M12M / D-coded / 4 p. L = 1 m | 110230 |
| Cable MSTKN Profinet / Ethernet Standard | M12M ↔ M12M / D-coded / 4 p. L = 2 m | 110231 |
| Cable MSTKN Profinet / Ethernet Standard | M12M ↔ M12M / D-coded / 4 p. L = 3 m | 110232 |
| Cable MSTKN Profinet / Ethernet Standard | M12M ↔ M12M / D-coded / 4 p. L = 5 m | 110233 |
| Cable MSTKN Profinet / Ethernet Standard | M12M ↔ M12M / D-coded / 4 p. L = 10 m | 111275 |
| Cable MSTKN Profinet / Ethernet Standard | M12M ↔ M12M / D-coded / 4 p. L = 15 m | 111245 |
| MSTKN Profinet / Ethernet high-flex cable | M12M ↔ M12M / D-coded / 4 p. L = 5 m | 22400140 |
| Standard adapter cable | ||
| Item | Description | |
| MSTKN Profinet / Ethernet cable | M12M ↔ RJ45 / D-coded / 4 p. L = 2 m | 1440625 |
| MSTKN Profinet / Ethernet cable | M12M ↔ RJ45 / D-coded / 4 p. L = 5 m | 1440627 |
| MSTKN Profinet / Ethernet cable | M12M ↔ RJ45 / D-coded / 4 p. L = 10 m | 1440630 |
| MSTKN Profinet / Ethernet cable | M12M ↔ RJ45 / D-coded / 4 p. L = 15 m | 1440631 |
| Flexible adapter cable | ||
| Item | Description | |
| MSTKN Profinet / Ethernet cable | M12M ↔ RJ45 / D-coded / 4 p. L = 2 m | 1440626 |
| MSTKN Profinet / Ethernet cable | M12M ↔ RJ45 / D-coded / 4 p. L = 5 m | 1440628 |
| MSTKN Profinet / Ethernet cable | M12M ↔ RJ45 / D-coded / 4 p. L = 10 m | 1440629 |
The following parts are available as spare parts:
MSTKN accessories and spare parts |
||
| Item | Description | item number |
| Programming and diagnostic adapter | USB-RS485 M12-Adapter L = 1,7 m | 222252 |
| For MSTKN-H-S | ||
| Item | Description | item number |
| MSTKN-H-Sxx-ZS | POM insert plug H 30 mm Ø 40 mm | 509030 |
| MSTKN-H-Sxx-ZS-100 | Insert plug made of POM H 100 mm Ø 40 mm | 33301 |
| MSTKN-H-Qxx-ZS-70 | POM insert plug H 40 mm Ø 70 mm | 509032 |
| Recording block | Insert block made of POM for MSTKN | 509010 |
| MSTKN-H-T18-ZS | Insert block made of POM for MSTKN T18 | 509031 |
| MSTKN-H-P-ZS | Replacement prismatic slider made of POM | 509020 |
| Terminating resistor M12M | M12M | 509096 |
| Profibus terminating resistor | M12F | 222251 |
