Overview of Profibus

Product overview > (Hardware) Socket trays > Profibus

S14_PBS24_PBT18_PB
ZurückWeiter

MSTKN-H-S14-HM-PB-M12

The 4-slots Socket Trays was developed for use in industrial environments Socket Trays was developed for use in industrial environments. It is compatible with all common screwdriving systems and Control systems. can be used. The connection to the respective screw system is made via a 25-pin DSUB connector or a coded M12 circular connector, depending on the variant selected. The robust aluminum housing can withstand even the toughest conditions at the workplace. The socket tray has an internal bus system so that each main module can be operated with several extension modules.

Datenblätter CAD Modelle Bedienungsanleitung-de Maßzeichnung

Feature Overview

The Profibus interface operates at a data rate of up to 12Mb/s. The I/O mapping defined by the GSD file allows either a simple signal exchange with predefined behavior or direct access to each individual LED and the individual sensors.

Further functions

Group functions and tool recognition can be parameterized using the programming cable and the software supplied.

You can find detailed information here: Programming cable.

MSTKN-H-S24-HM-PB-M12

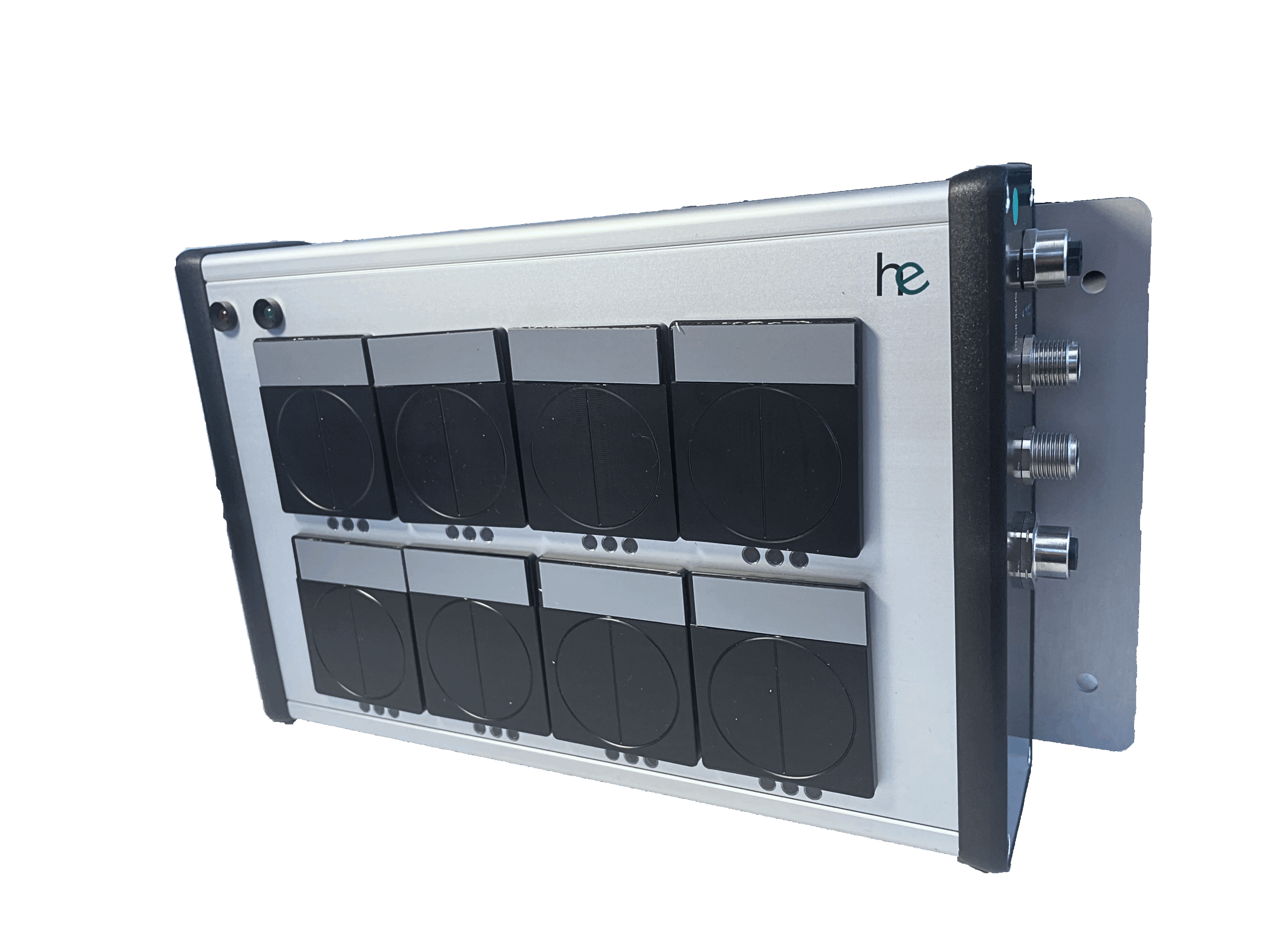

The 8-slots Socket Trays was developed for use in industrial environments. It is compatible with all common screwdriving systems and Control systems. can be used. The connection to the respective screw system is made via a 25-pin DSUB connector or a coded M12 circular connector, depending on the variant selected. The robust aluminum housing can withstand even the toughest conditions at the workplace. The socket tray has an internal bus system so that each main module can be operated with several extension modules.

Datenblätter CAD Modelle Bedienungsanleitung-de Maßzeichnung

Feature Overview

The Profibus interface operates at a data rate of up to 12Mb/s. The I/O mapping defined by the GSD file allows either a simple signal exchange with predefined behavior or direct access to each individual LED and the individual sensors.

Further functions

Group functions and tool recognition can be parameterized using the programming cable and the software supplied.

You can find detailed information here: Programming cable.

MSTKN-H-T18-HM-PB-M12

The T18 Socket Trays was developed for use in industrial environments. It is compatible with all common screwdriving systems and Control systems. can be used. The connection to the respective screw system is made via a 25-pin DSUB connector or a coded M12 circular connector, depending on the variant selected. The robust aluminum housing can withstand even the toughest conditions at the workplace. The socket tray has an internal bus system so that each main module can be operated with several extension modules.

Datenblätter CAD Modelle Bedienungsanleitung-de Maßzeichnung

Feature Overview

The Profibus interface operates at a data rate of up to 12Mb/s. The I/O mapping defined by the GSD file allows either a simple signal exchange with predefined behavior or direct access to each individual LED and the individual sensors.

Further functions

Group functions and tool recognition can be parameterized using the programming cable and the software supplied.

You can find detailed information here: Programming cable.

Available versions

Socket Trays
type Description
Main module 24V EA Parallel interface
Main module 24V EA parallel interface, Open Protocol variant
Main module Profinet slave fieldbus interface
Main module Profibus slave fieldbus interface
Main module Ethernet/IP slave fieldbus interface
Main module EtherCAT fieldbus interface
extension module Modbus slave fieldbus interface
