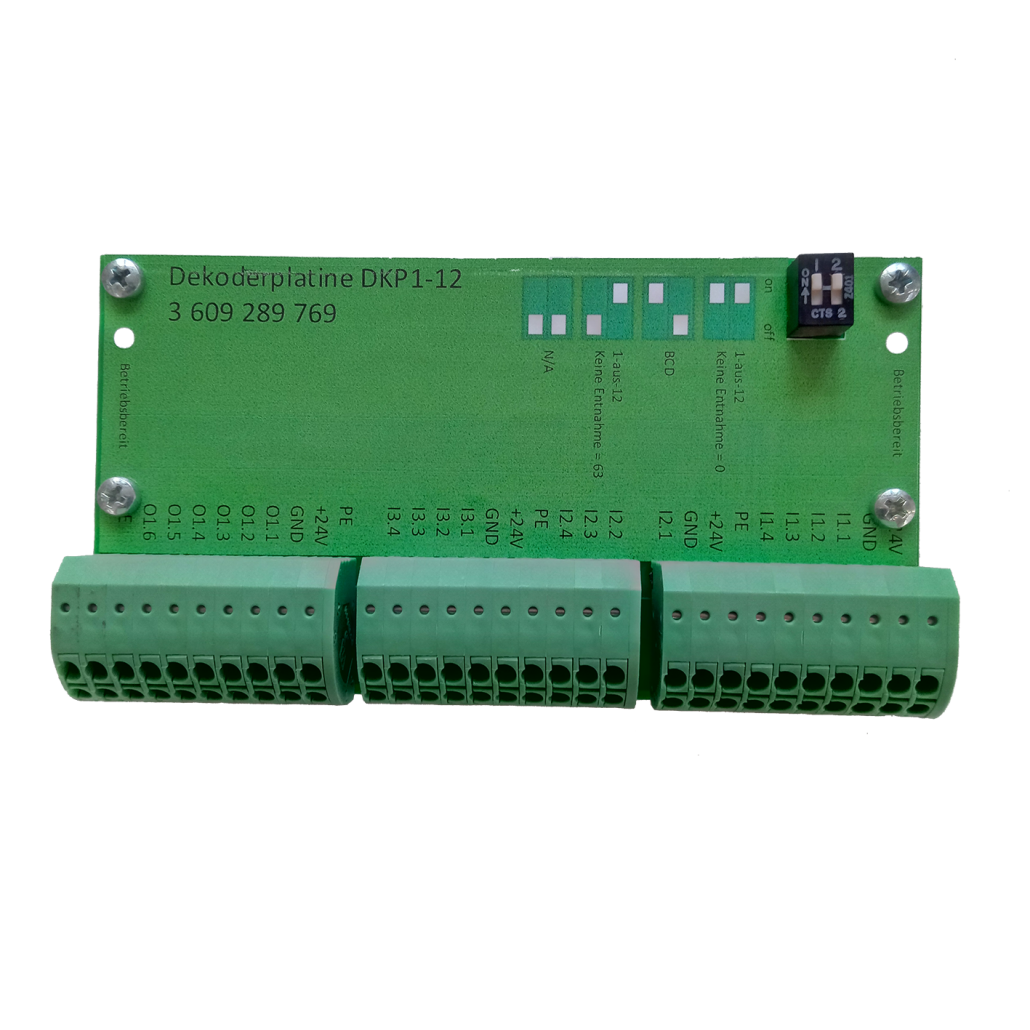

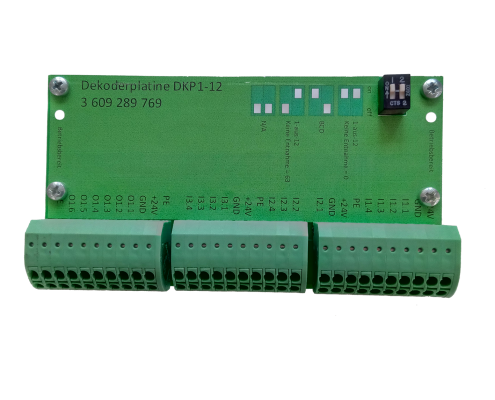

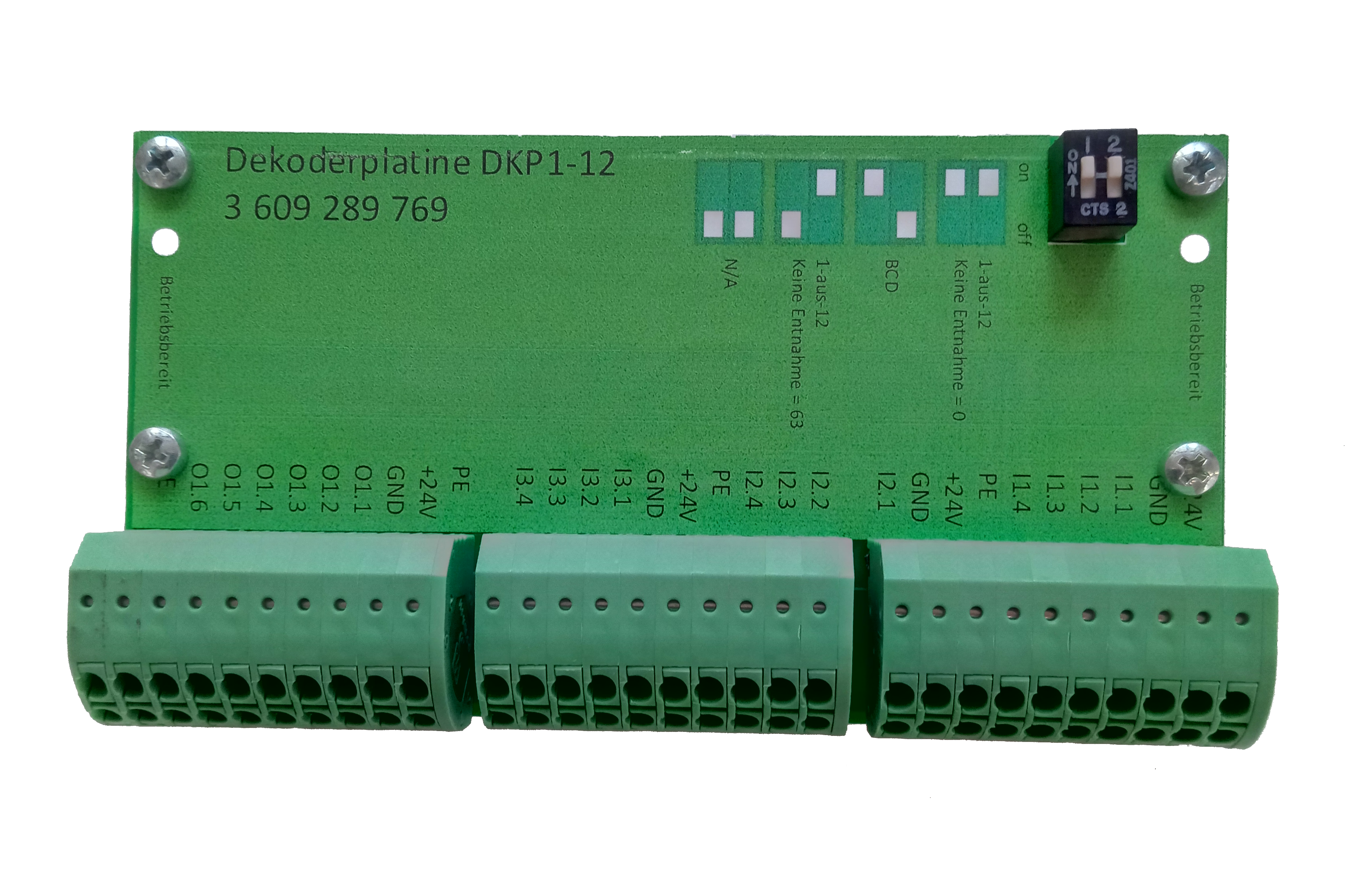

Decoder board DKP1-12
Decoder board with connection terminals for alternatively three socket heads or two
Decade switch. The option is switchable via an input
With jumper = for decade switch
without jumper = for socket trays
The sockets provide a 1 code, the decade switches a two-digit BCD code.
Both codes are converted into a 6-digit dual code.
For further information:

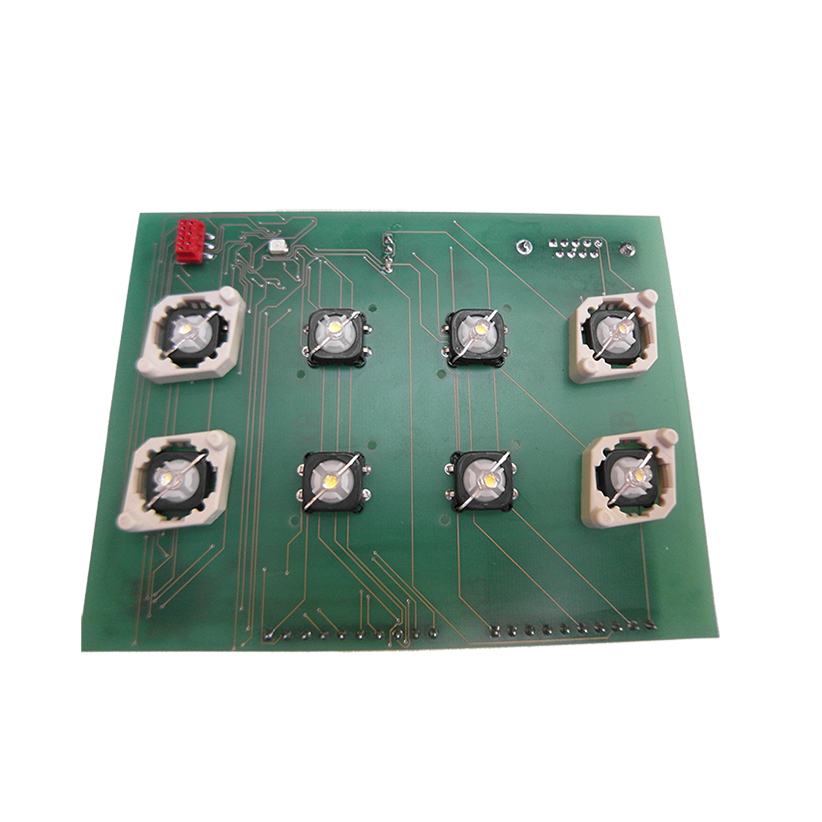

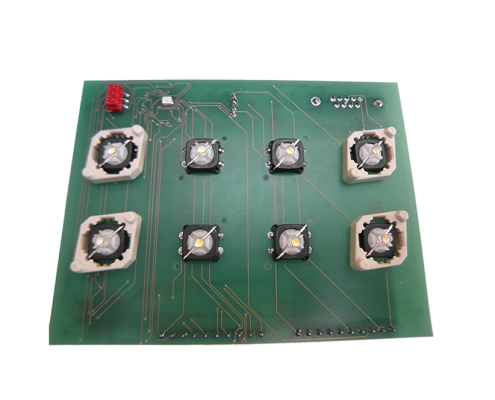

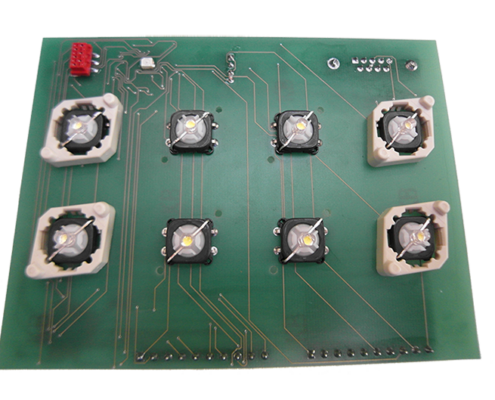

Decoder board DKP2-BCD
The DKP2-BCD is a BCD to binary encoder. It is a modified version of the 8-fold keypad and performs a similar function to the “DKP1aus12” board, except that 8 outputs are available on the DKP2-BCD instead of only 6 on the DKP1aus12. The connection is made via two pin headers with a 3.5mm pitch. The DKP2-BCD has two 10-pin pin headers with 3.5mm spacing, the assignment of which is explained below, a DSUB9 connection for programming and a 6-pin micro-match connection.
For further information:
Order Information
Please place your order in writing by email: contact@haller-erne.de
Decoder circuit boards |
||
| Item | Description | item number |
| Decoder board DKP1-12 | Decoder board for 48 programs | 3521 |
| Decoder board DKP2-BCD | Decoder board for 99 programs | 35219 |
