WiFi 802.11 a/b/g/n dual band (2.4 / 5 GHz) with Modbus-TCP/UDP connectivity

Intelligent operator guidance
Status indication via multicolor LEDs with customizable configuration

Independent operation
Powered by GBA 12 V battery (3.0 Ah) – ideal for mobile applications

Expandable
Expandable up to 60 slots via internal bus system

Simple configuration
Integrated web server for wireless setup via smartphone or notebook

Robust and industrial-grade
Aluminum housing with edge protection, protection class IP54

Socket Trays
type	Description
Main module	24V EA Parallel interface
Main module	24V EA parallel interface, Open Protocol variant
Main module	Profinet slave fieldbus interface
Main module	Profibus slave fieldbus interface
Main module	Ethernet/IP slave fieldbus interface
Main module	EtherCAT fieldbus interface
extension module	Modbus slave fieldbus interface

MSTKN Main modules WLAN with GBA 12V battery
Item	Description	item number

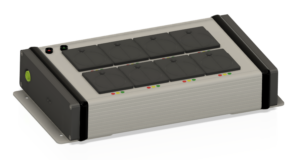

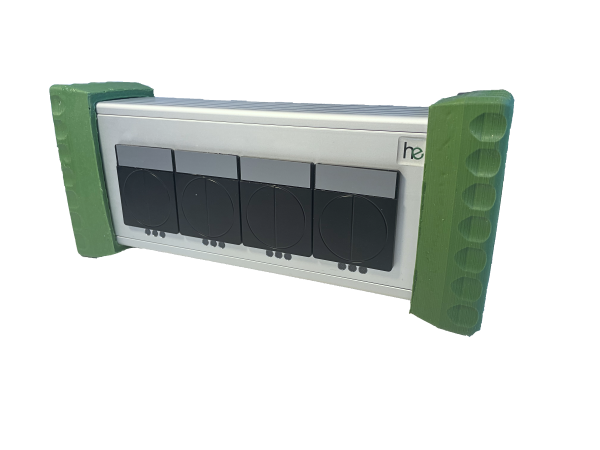

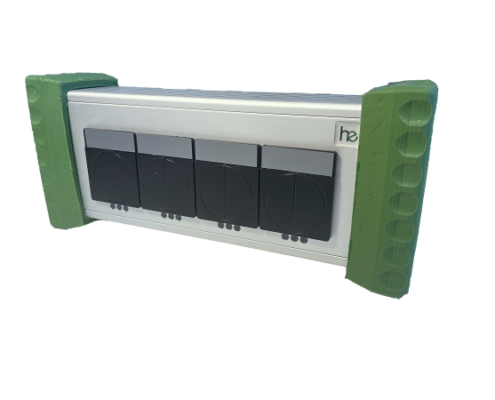

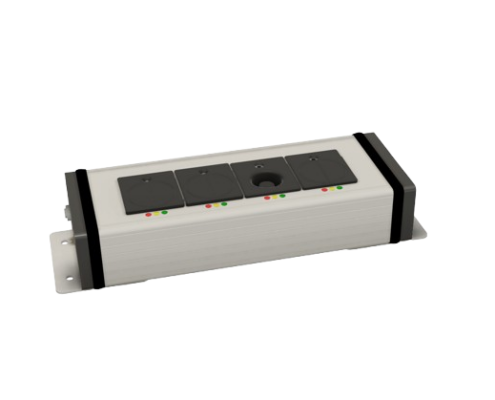

MSTKN-H-S14-HM-WLAN-GBA	4-slots, 1-row, socket size up to 35mm	23014

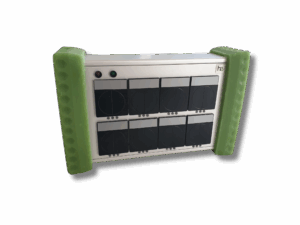

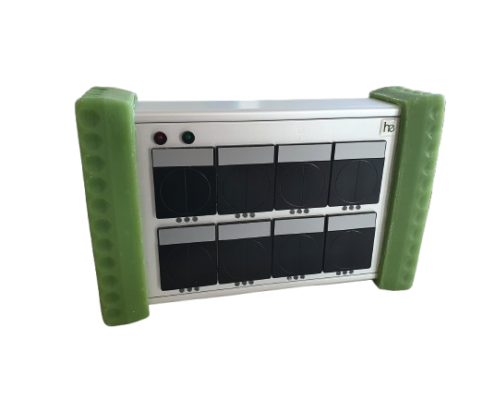

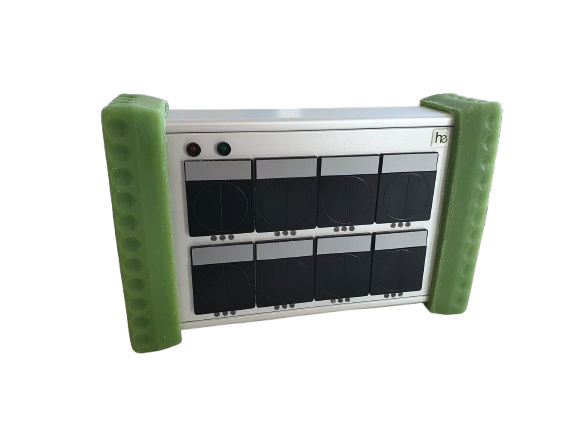

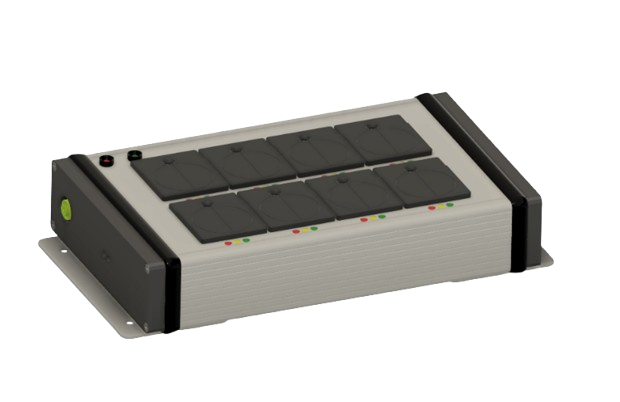

MSTKN-H-S24-HM-WLAN-GBA	8-slots, 2-row, socket size up to 35mm	23015
MSTKN Hauptmodule WLAN mit 24V-Versorgung
Item	Description	item number

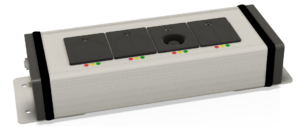

MSTKN-H-S14-HM-WLAN-24V	4-slots, 1-row, socket size up to 35mm	23016
MSTKN-H-S24-HM-WLAN-24V	8-slots, 2-row, socket size up to 35mm	23017
MSTKN-H-Q13-HM-WLAN-24V	3-slots, 1-row, socket size up to 70 mm	22331

MSTKN accessories and spare parts
Item	Description	item number
Programming and diagnostic adapter	USB-RS485 M12-Adapter L = 1,7 m	222252

For MSTKN-H-S
Item	Description	item number
MSTKN-H-Sxx-ZS	POM insert plug H 30 mm Ø 40 mm	509030
MSTKN-H-Sxx-ZS-100	Insert plug made of POM H 100 mm Ø 40 mm	33301
MSTKN-H-Qxx-ZS-70	POM insert plug H 40 mm Ø 70 mm

Recording block	Insert block made of POM for MSTKN	509010
MSTKN-H-T18-ZS	Insert block made of POM for MSTKN T18	509031
MSTKN-H-P-ZS	Replacement prismatic slider made of POM	509020

Terminating resistor M12M	M12M	509096
Profibus terminating resistor	M12F	222251
