Overview of socket trays supplies
Product overview > supplies > Stecknussköcher Zubehör
Plug 30 mm
Plug for MSTKN plug-in nut holder. Material made of POM.
For further information:

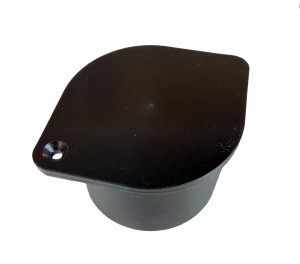

Plug 70mm
Plug for MSTKN plug-in nut holder. Material made of POM.
For further information:

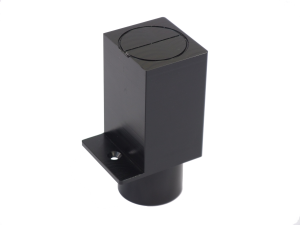

Stopfen 100mm
Plug for MSTKN Socket Tray Material made of POM.
For further information:

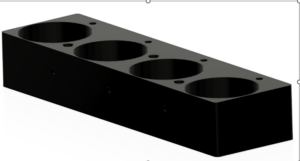

Einsatzblock
Insert block for 4-way MSTKN socket holder. Material made of POM.

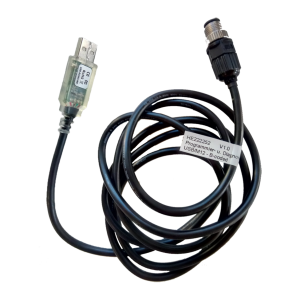

programming adapter
Cable MSTKN programming and diagnostic adapter for 4-way MSTKN plug connector.
The MSTKN sockets are always supplied ready for use with the latest firmware and correct calibration. The MSTKN programming and diagnostic adapter is required to change settings or update the firmware.
Communication with the socket trays takes place via an A-coded M12 interface of the socket quiver. To use the cable under Windows, the supplied driver (on CD) may need to be installed (FTDI USB driver).
For further information:
Possible applications
The cable is required for the following software, which is available on the
is included on the CD supplied:
- Firmware-Updater: MSTKN-fwu.exe
- HM-Configurator: MSTKN-HM-Config.exe
- SM-Configurator: MSTKN-SM-Config.exe
Order information
Please order by email: contact@haller-erne.de
Available versions
| For MSTKN-H-S | ||
| Item | Description | item number |
| MSTKN-H-Sxx-ZS | POM insert plug H 30 mm Ø 40 mm | 509030 |
| MSTKN-H-Sxx-ZS-100 | Insert plug made of POM H 100 mm Ø 40 mm | 33301 |
| MSTKN-H-Qxx-ZS-70 | POM insert plug H 40 mm Ø 70 mm | 509032 |
