Programmwahlbox im Überblick
Product overview > supplies > Program selection box
🛠️ Application Area
The hePWB program selection box was developed specifically for use in industrial environments. It enables precise and intuitive selection of programs (0–255) and reliably transmits them to connected control systems—ideal for Bosch IM24V systems.
A robust aluminum housing, a clear LED display, and the ergonomic rotary encoder ensure comfortable operation even under harsh conditions.
hePSB – Programmwahlbox
Designed for use in industrial environments. It can be used in conjunction with all common screwdriving systems and controls. Depending on the version selected, it is connected to the respective screwdriving system via a 25-pin DSUB plug connector or a coded M12 circular connector. The robust aluminium housing can withstand even heavy loads in the workplace. The quiver has an interesting bus system so that each main module can be operated with several expansion modules.
For further information:

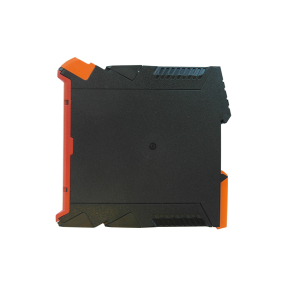

PWM – Generator
The PWM generator is supplied with a voltage of 24VDC. The pulse pause ratio is set on the rotary switch. For example, switch position 1 corresponds to a duty cycle of 10% and switch position 9 corresponds to a duty cycle of 90%, each at a constant base frequency of 1kHz. The output signal is pulse width modulated with an amplitude of 24V. The status LED is also controlled by the PWM signal and therefore lights up brighter or dimmer depending on the duty cycle.
For further information:
🔧 Function & Control
The hePWB program selection box allows you to easily select and transfer programs to connected controllers or screwdriving systems. The rotary encoder can be used to set a program number between 0 and 255, which can then be activated at the touch of a button. A three-digit red LED display clearly shows the current selection, while the brightness can be adjusted individually.
Thanks to the configurable inputs and outputs (24 V), the box can be flexibly integrated into various systems. Software or firmware updates can be performed via the USB interface as needed. The hePWB thus offers a precise, robust, and adaptable solution for program selection in industrial applications.
Highlights
Flexibel
Selection of up to 100 programs, program number is output to 8 outputs
Simple operation
Flashing indicates new selection, pressing the rotary knob confirms output
Display
ChatGPT: 3-digit red LED, brightness adjustable via rotary knob
Configurable
Inputs/outputs configurable via software in blocks of 2×3 and 2×2
Robust
IP54 enclosure, easy to install with ball clamp flange
interfaces
12-pin M12 connector, 24V I/O signals, optional cable break monitoring
firmware update
possible via internal USB interface
