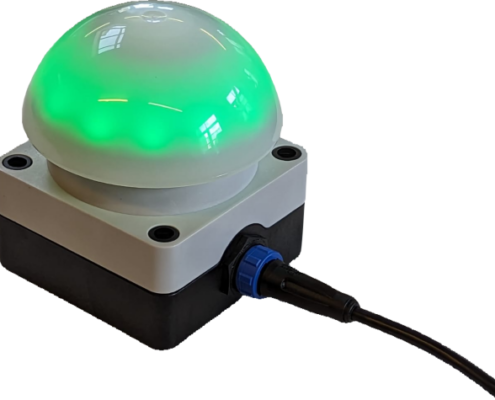

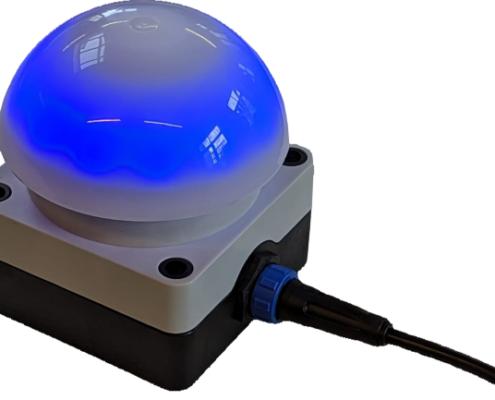

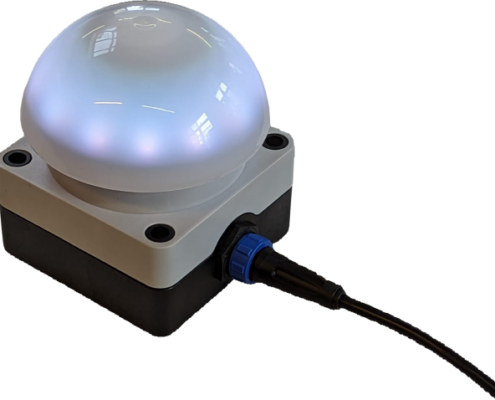

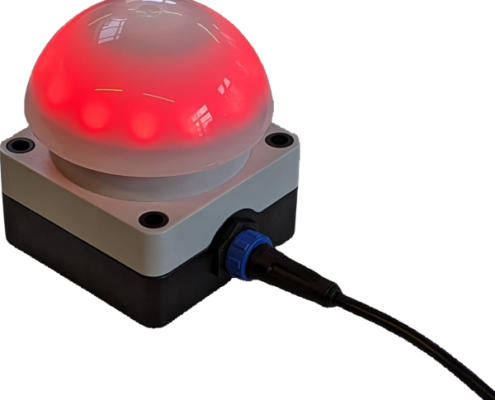

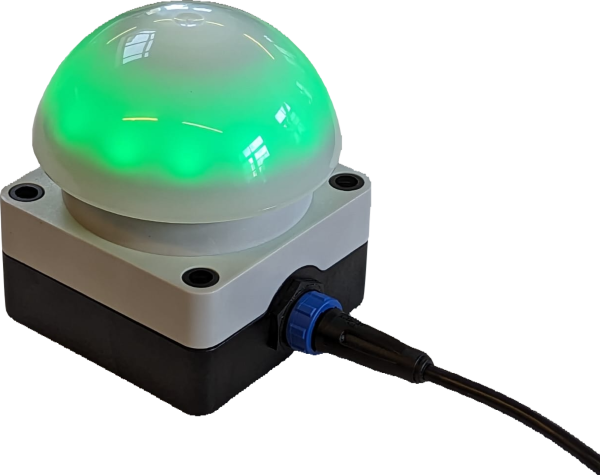

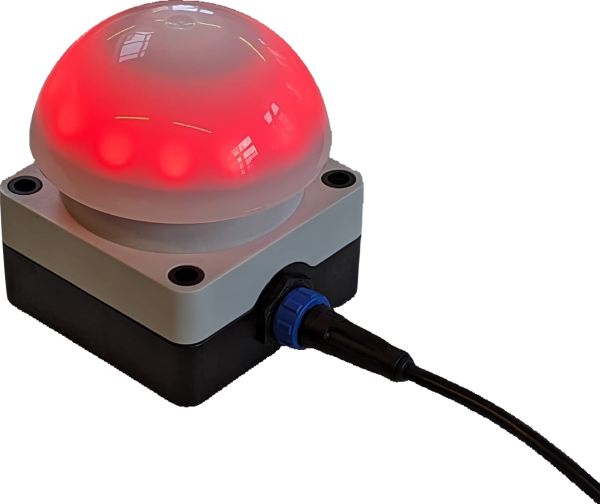

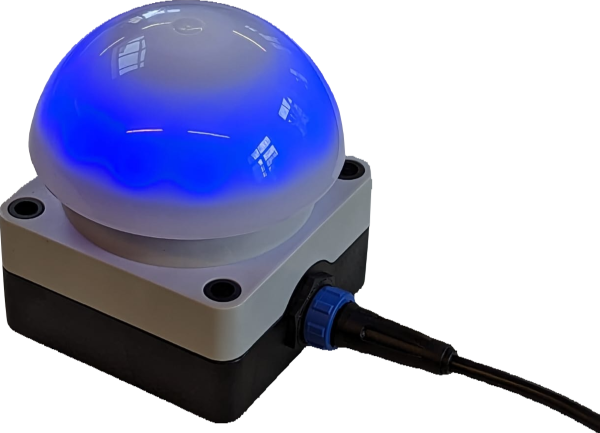

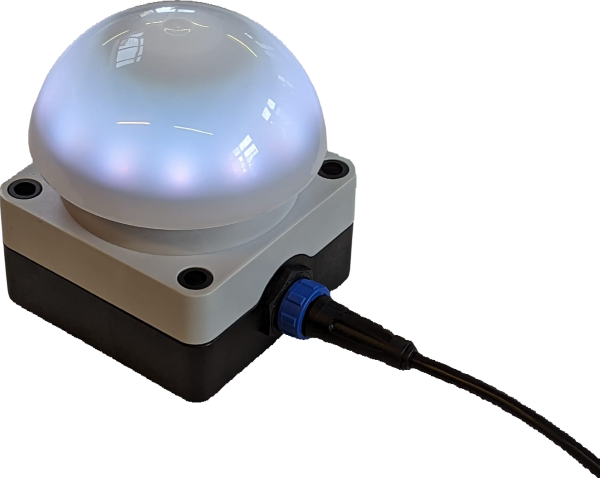

USB push button with RGB lighting

The USB RGB key was specially developed for use in industrial environments. The power supply and the PC connection are made via a USB mini plug from Buckaneer (screwable). An address can be assigned to the RGB key via the USB connection or it can be addressed via broadcast. The status can be displayed to the operator via the LED ring or an input request can be displayed. The data exchange always consists of 64 bytes (send/receive) and always has the same structure: Address, command, length and data. All RGB colors can be transmitted to the RGB key and this for all 12 LEDs. also separately for each LED. The push-button function sends one byte actuated/not actuated.

For further information:

• Datasheet
• user manual
