Overview of 24V I/O

Product overview > (Hardware) Socket trays > 24V I/O

MSTKN-H-S14-HM-DB25-M12

The 4-slots Socket Trays was developed for use in industrial environments Socket Trays was developed for use in industrial environments. It is compatible with all common screwdriving systems and Control systems. can be used. The connection to the respective screw system is made via a 25-pin DSUB connector or a coded M12 circular connector, depending on the variant selected. The robust aluminum housing can withstand even the toughest conditions at the workplace. The socket tray has an internal bus system so that each main module can be operated with several extension modules.

Data Sheets CAD Modelle Documentation Maßzeichnung downloads

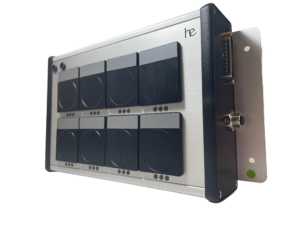

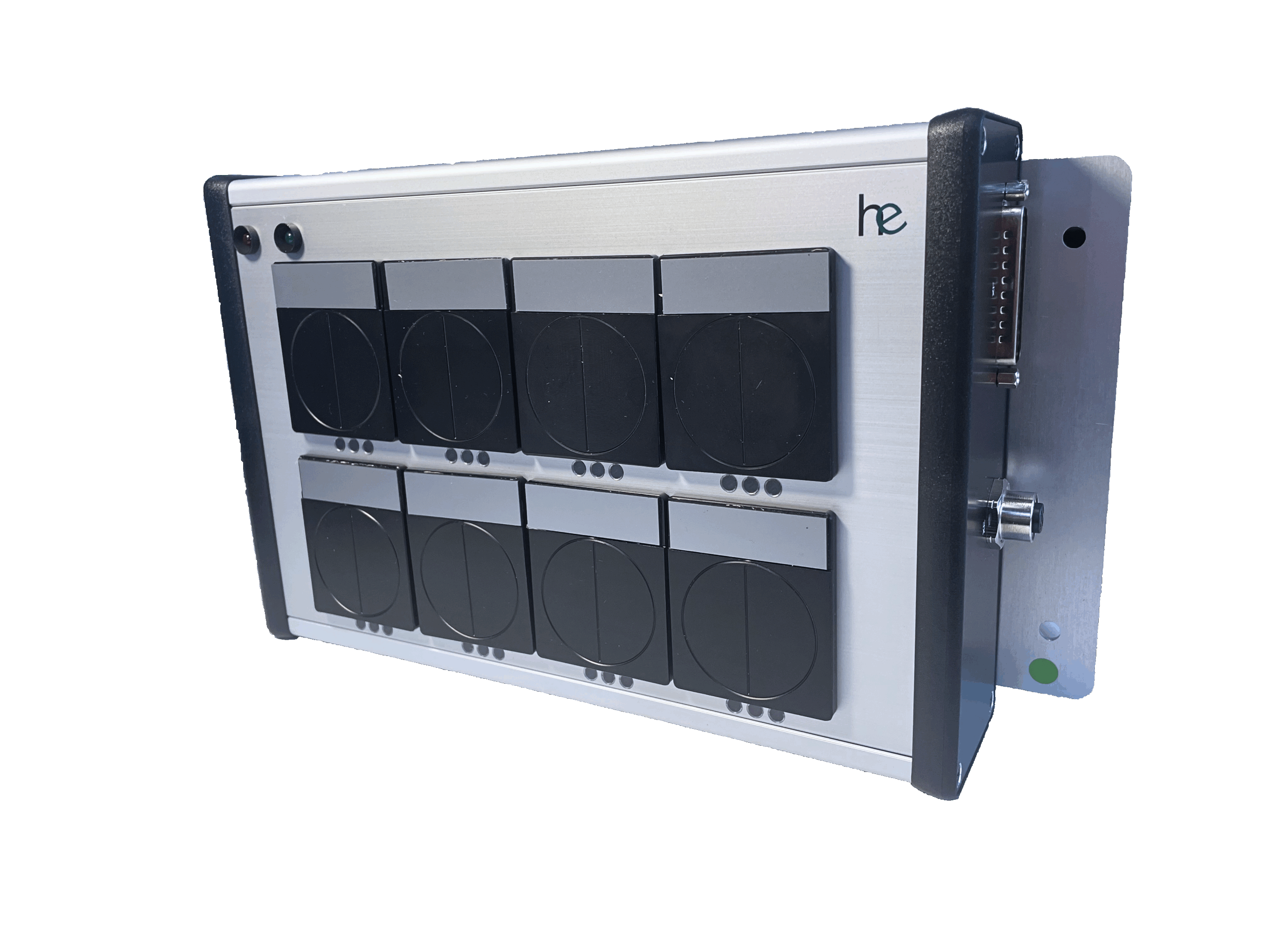

MSTKN-H-S24-HM-DB25-M12

The 8-slots Socket Trays was developed for use in industrial environments. It is compatible with all common screwdriving systems and Control systems. can be used. The connection to the respective screw system is made via a 25-pin DSUB connector or a coded M12 circular connector, depending on the variant selected. The robust aluminum housing can withstand even the toughest conditions at the workplace. The socket tray has an internal bus system so that each main module can be operated with several extension modules.

Data Sheets CAD Modelle Documentation Maßzeichnung downloads

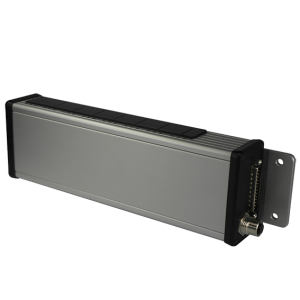

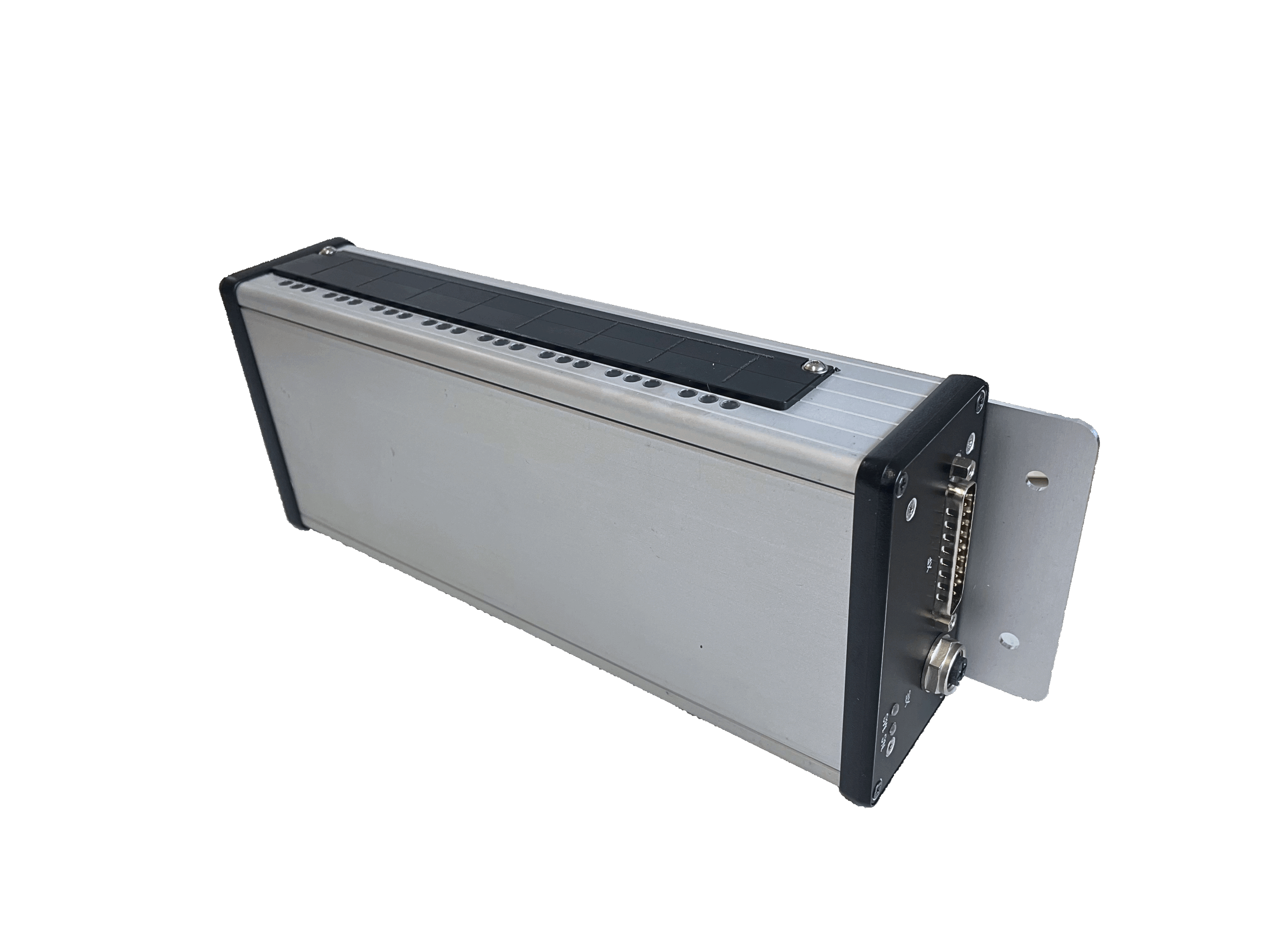

MSTKN-H-T18-HM-DB25-M12

The T18 Socket Trays was developed for use in industrial environments. It is compatible with all common screwdriving systems and Control systems. The connection to the respective screw system is made via a 25-pin DSUB connector. The robust aluminum housing can withstand even the toughest workplace conditions. The quiver has an internal bus system so that each main module can be operated with several extension modules.

Data Sheets CAD Modelle Documentation Maßzeichnung downloads

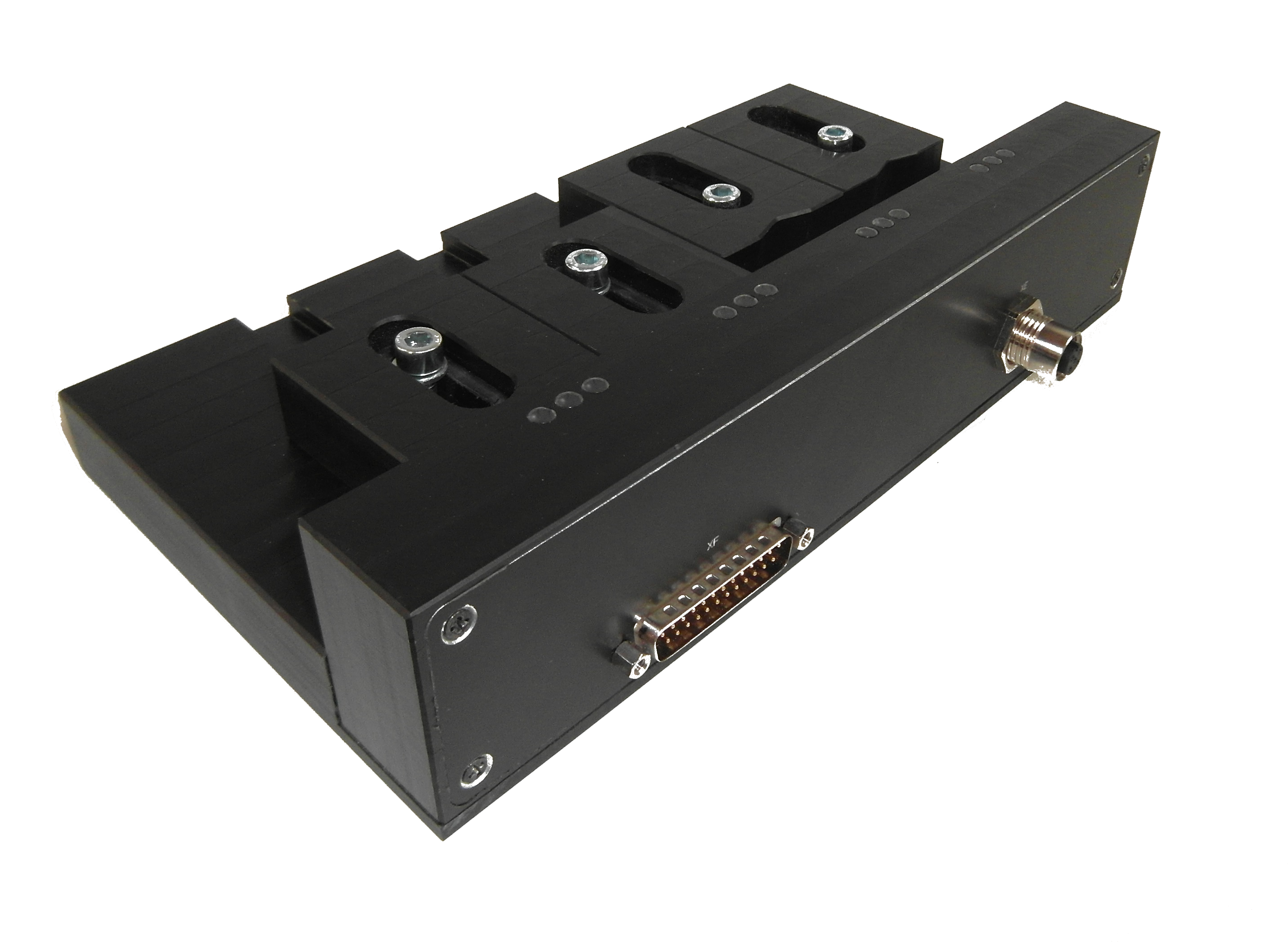

MSTKN-P-P14-HM-DB25-M12

The Prism slider was developed for use in industrial environments. It is compatible with all common screwdriving systems and Control systems. can be used. The connection to the respective screw system is made via a 25-pin DSUB connector or a coded M12 circular connector, depending on the variant selected. The robust aluminum housing can withstand even the toughest conditions at the workplace. The socket tray has an internal bus system so that each main module can be operated with several extension modules.

Data Sheets CAD Modelle Documentation Maßzeichnung downloads

Feature Overview

Communication with the socket quiver takes place via a 24V interface, the connection via a DSUB25 (pin) connector. The interface is used to select the desired operating mode, tool selection, feedback from the socket trays and the
Execution of the diagnostic functionality. The control is dual or bit-coded.

Further functions

Group functions and tool recognition can be parameterized using the programming cable and the software supplied.

You can find detailed information here: Programming cable

Available versions

Socket Trays
type	Description
Main module	24V EA Parallel interface
Main module	24V EA parallel interface, Open Protocol variant
Main module	Profinet slave fieldbus interface
Main module	Profibus slave fieldbus interface
Main module	Ethernet/IP slave fieldbus interface
Main module	EtherCAT fieldbus interface
extension module	Modbus slave fieldbus interface

Oder information

Bitte bestellen Sie schriftlich per E-Mail: contact@haller-erne.de

MSTKN main modules 24V-I/O
Item	Description	item number
MSTKN-H-S14-HM-DB25-M12	4-slots, 1-row, socket size up to 35mm	22291
MSTKN-H-S14-HM-DB25-M12-OP	Variant Open Protocol, 4-slots, socket size up to 35mm	22321
MSTKN-H-S14-HM-DB25-M12-XML	Variant XML, 4-slots, 1-row, socket size up to 35mm	22365
MSTKN-H-S24-HM-DB25-M12	8-slots, 2-row, socket size up to 35mm	22301
MSTKN-H-S24-HM-DB25-M12-OP	Open Protocol variant, 8-slots, double row, socket size up to 35mm	22323
MSTKN-H-S24-HM-DB25-M12-XML	Variant XML, 8-slots, 2-row, socket size up to 35mm	22366
MSTKN-H-S25-HM-DB25-M12	10-slots, 2-row, socket size up to 35mm	22369
MSTKN-H-T18-HM-DB25-M12	8-slots, 1-row, socket size up to 18mm	22308
MSTKN-H-T18-HM-DB25-M12-OP	Variant Open Protocol, 8-slots, 1-row, nut size up to 18mm	22325
MSTKN-H-T18-HM-DB25-M12-XML	Variant XML, 8-slots, 1-row, nut size up to 18mm	22367
MSTKN-P-P14-HM-DB25-M12	4-slots, socket size up to 48mm	22326
MSTKN-P-P14-HM-DB25-M12-OP	Variant Open Protocol, 4-slots, socket size up to 48mm	22327

Cable


Connection cable 24V-I/O
Item	Description	item number
Connection cable MSTKN 24V-I/O	DSUB25M ↔ DSUB25F 2m	22209
Connection cable MSTKN 24V-I/O	DSUB25M ↔ DSUB25F 3m	22229
Connection cable MSTKN 24V-I/O	DSUB25M ↔ DSUB25F 5m	22230
Connection cable MSTKN 24V-I/O	DSUB25M ↔ DSUB25F 10m	22231
Connection cable MSTKN 24V-I/O	DSUB25M ↔ DSUB25F 20m	22221
Connection cable MSTKN 24V-I/O	DSUB25M ↔ DSUB25F 30m	22222

Power supply cable 24V
Item	Description	item number
Cable MSTKN Power supply 24V	M12M ↔ M12F / A-coded / 5 p. L = 1 m	22126
Cable MSTKN Power supply 24V	M12M ↔ M12F / A-coded / 5 p. L = 1 m	22127
Cable MSTKN Power supply 24V	M12M ↔ M12F / A-coded / 5 p. L = 2 m	22128
Cable MSTKN Power supply 24V	M12M ↔ M12F / A-coded / 5 p. L = 3 m	22129
Cable MSTKN Power supply 24V	M12M ↔ M12F / A-coded / 5 p. L = 5 m	22130
Cable MSTKN Power supply 24V	M12M ↔ M12F / A-coded / 5 p. L = 10 m	22131
Cable MSTKN Power supply 24V	M12M ↔ M12F / A-coded / 5 p. L = 15 m	22132

supplies

The following parts are available as spare parts:

MSTKN accessories and spare parts
Item	Description	item number
Programming and diagnostic adapter	USB-RS485 M12-Adapter L = 1,7 m	222252

For MSTKN-H-S
Item	Description	item number
MSTKN-H-Sxx-ZS	POM insert plug H 30 mm Ø 40 mm	509030
MSTKN-H-Sxx-ZS-100	Insert plug made of POM H 100 mm Ø 40 mm	33301
MSTKN-H-Qxx-ZS-70	POM insert plug H 40 mm Ø 70 mm	509032

Recording block	Insert block made of POM for MSTKN	509010
MSTKN-H-T18-ZS	Insert block made of POM for MSTKN T18	509031
MSTKN-H-P-ZS	Replacement prismatic slider made of POM	509020

Terminating resistor M12M	M12M	509096
Profibus terminating resistor	M12F	222251
