Highlights
LED status display:
Up to 8 slots
Three operating modes.
Free selection, worker guidance, direct operation.
Robust aluminum housing.
Protection class IP54
Flexible software versions:
Standard (dual-coded) or OP/XML (bit-coded)
24V signal level and power supply
Tool diameter up to 38 mm
Expandable up to 32 slots
Reliable operation from −20 °C to +50 °C
Further information

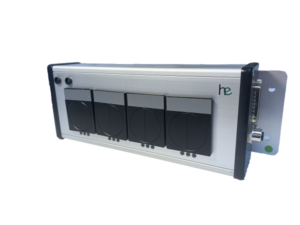

- MSTKN S14

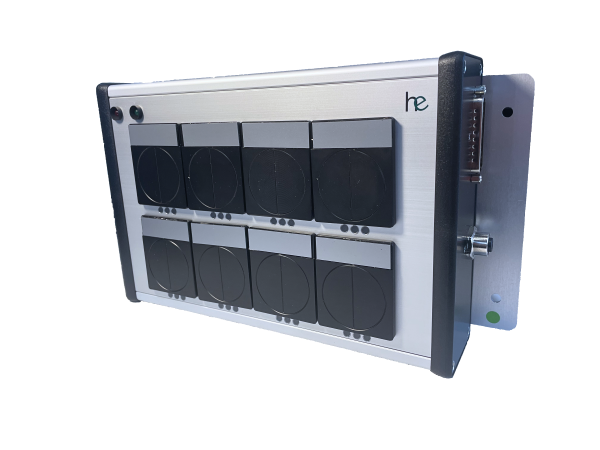

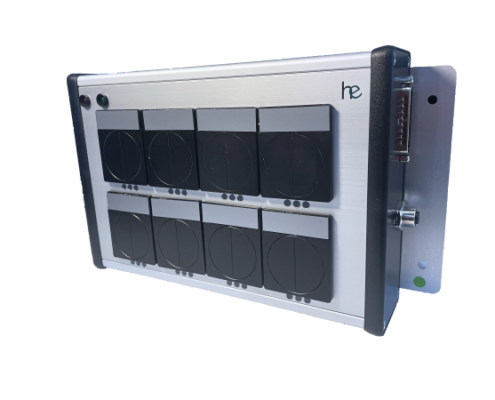

- MSTKN S24

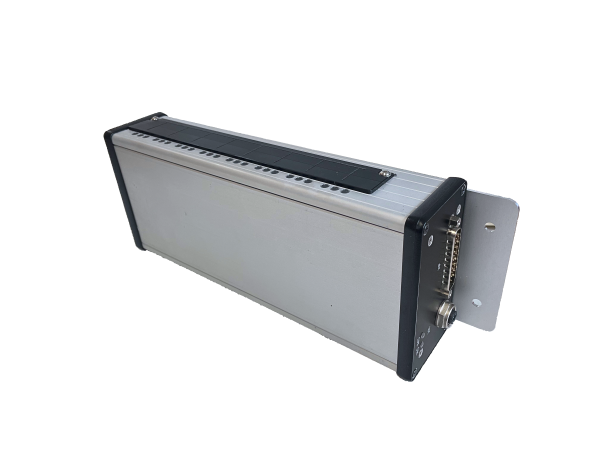

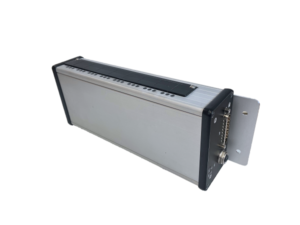

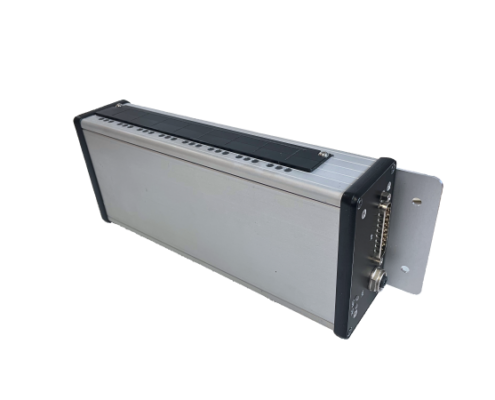

- MSTKN T18

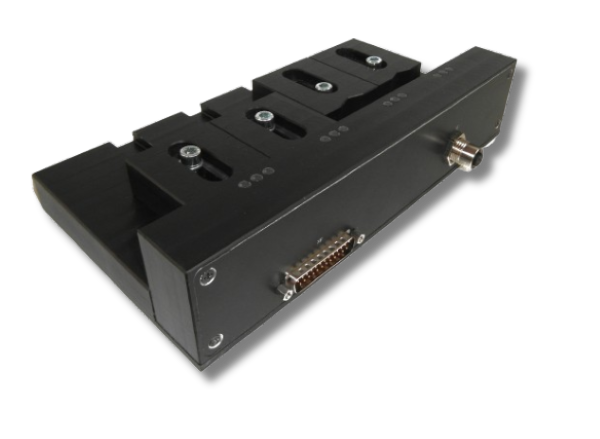

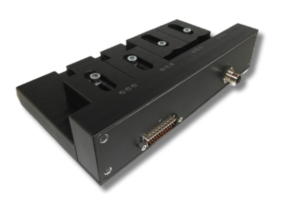

- Prism slider
Allgemeine Information:
Available versions
Socket Trays |
|
| type | Description |
| Main module | 24V EA Parallel interface |
| Main module | 24V EA parallel interface, Open Protocol variant |
| Main module | Profinet slave fieldbus interface |
| Main module | Profibus slave fieldbus interface |
| Main module | Ethernet/IP slave fieldbus interface |
| Main module | EtherCAT fieldbus interface |
| extension module | Modbus slave fieldbus interface |
Oder information
Please place your order in writing by email: contact@haller-erne.de
MSTKN main modules 24V-I/O |
||
| Item | Description | item number |
| MSTKN-H-S14-HM-DB25-M12 | 4-slots, 1-row, socket size up to 35mm | 22291 |
| MSTKN-H-S14-HM-DB25-M12-OP | Variant Open Protocol, 4-slots, socket size up to 35mm | 22321 |
| MSTKN-H-S14-HM-DB25-M12-XML | Variant XML, 4-slots, 1-row, socket size up to 35mm | 22365 |
| MSTKN-H-S24-HM-DB25-M12 | 8-slots, 2-row, socket size up to 35mm | 22301 |
| MSTKN-H-S24-HM-DB25-M12-OP | Open Protocol variant, 8-slots, double row, socket size up to 35mm | 22323 |
| MSTKN-H-S24-HM-DB25-M12-XML | Variant XML, 8-slots, 2-row, socket size up to 35mm | 22366 |
| MSTKN-H-S25-HM-DB25-M12 | 10-slots, 2-row, socket size up to 35mm | 22369 |
| MSTKN-H-T18-HM-DB25-M12 | 8-slots, 1-row, socket size up to 18mm | 22308 |
| MSTKN-H-T18-HM-DB25-M12-OP | Variant Open Protocol, 8-slots, 1-row, nut size up to 18mm | 22325 |
| MSTKN-H-T18-HM-DB25-M12-XML | Variant XML, 8-slots, 1-row, nut size up to 18mm | 22367 |
| MSTKN-P-P14-HM-DB25-M12 | 4-slots, socket size up to 48mm | 22326 |
| MSTKN-P-P14-HM-DB25-M12-OP | Variant Open Protocol, 4-slots, socket size up to 48mm | 22327 |
Cable
Connection cable 24V-I/O |
||
| Item | Description | item number |
| Connection cable MSTKN 24V-I/O | DSUB25M ↔ DSUB25F 2m | 22209 |
| Connection cable MSTKN 24V-I/O | DSUB25M ↔ DSUB25F 3m | 22229 |
| Connection cable MSTKN 24V-I/O | DSUB25M ↔ DSUB25F 5m | 22230 |
| Connection cable MSTKN 24V-I/O | DSUB25M ↔ DSUB25F 10m | 22231 |
| Connection cable MSTKN 24V-I/O | DSUB25M ↔ DSUB25F 20m | 22221 |
| Connection cable MSTKN 24V-I/O | DSUB25M ↔ DSUB25F 30m | 22222 |
| Power supply cable 24V | ||
| Item | Description | item number |
| Cable MSTKN Power supply 24V | M12M ↔ M12F / A-coded / 5 p. L = 1 m | 22126 |
| Cable MSTKN Power supply 24V | M12M ↔ M12F / A-coded / 5 p. L = 1 m | 22127 |
| Cable MSTKN Power supply 24V | M12M ↔ M12F / A-coded / 5 p. L = 2 m | 22128 |
| Cable MSTKN Power supply 24V | M12M ↔ M12F / A-coded / 5 p. L = 3 m | 22129 |
| Cable MSTKN Power supply 24V | M12M ↔ M12F / A-coded / 5 p. L = 5 m | 22130 |
| Cable MSTKN Power supply 24V | M12M ↔ M12F / A-coded / 5 p. L = 10 m | 22131 |
| Cable MSTKN Power supply 24V | M12M ↔ M12F / A-coded / 5 p. L = 15 m | 22132 |
The following parts are available as spare parts:
MSTKN accessories and spare parts |
||
| Item | Description | item number |
| Programming and diagnostic adapter | USB-RS485 M12-Adapter L = 1,7 m | 222252 |
| For MSTKN-H-S | ||
| Item | Description | item number |
| MSTKN-H-Sxx-ZS | POM insert plug H 30 mm Ø 40 mm | 509030 |
| MSTKN-H-Sxx-ZS-100 | Insert plug made of POM H 100 mm Ø 40 mm | 33301 |
| MSTKN-H-Qxx-ZS-70 | POM insert plug H 40 mm Ø 70 mm | 509032 |
| Recording block | Insert block made of POM for MSTKN | 509010 |
| MSTKN-H-T18-ZS | Insert block made of POM for MSTKN T18 | 509031 |
| MSTKN-H-P-ZS | Replacement prismatic slider made of POM | 509020 |
| Terminating resistor M12M | M12M | 509096 |
| Profibus terminating resistor | M12F | 222251 |
