Product overview > (Hardware) Socket trays > Ethernet
LED status display:
Up to 8 slots
Two operating modes
Intelligent mode & Direct I/O
Robust aluminum housing.
Protection class IP54
Detailed diagnostic functions via Modbus-TCP
Expandable up to 32 slots
Tool diameter up to 38 mm
Modbus-TCP Slave
(100 Mbit/s, Open-Modbus-TCP/UDP)
24 V supply via M12 connector
Description | Description | item number |

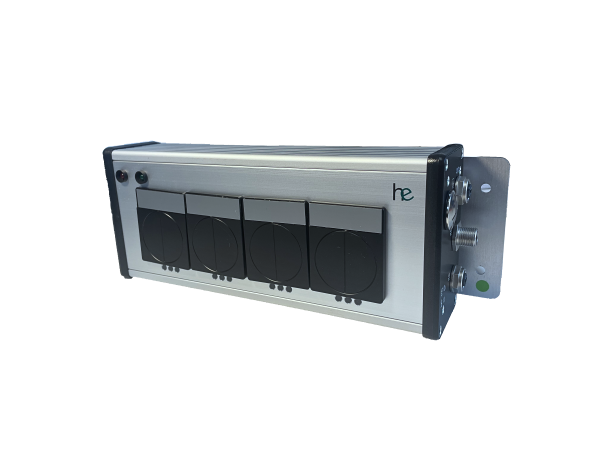

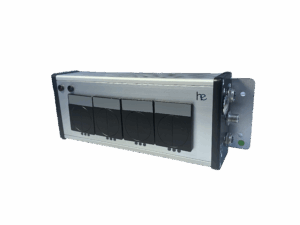

| MSTKN-H-S14-HM-ETH-M12 | 4-slots, 1-row, socket size up to 35mm | 22345 |

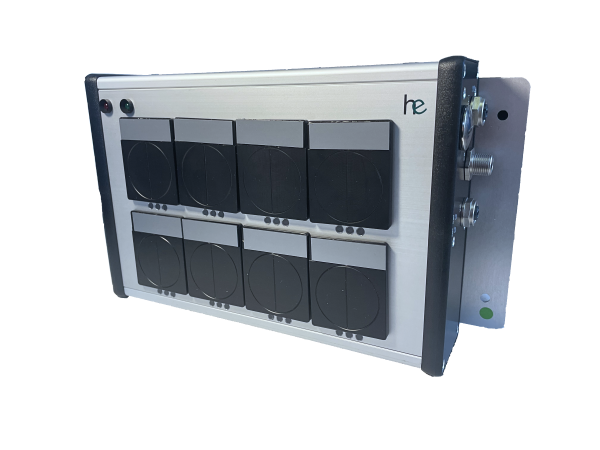

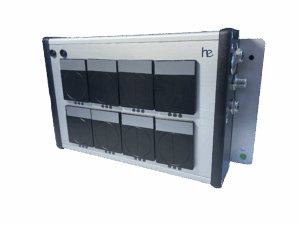

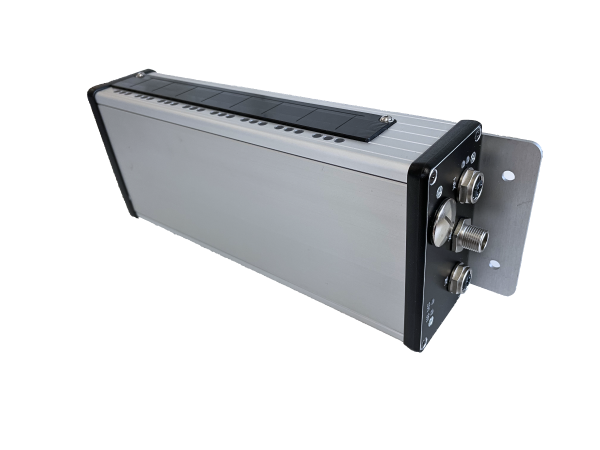

| MSTKN-H-S24-HM-ETH-M12 | 8-slots, 2-row, socket size up to 35mm | 22346 |
| MSTKN-H-T18-HM-ETH-M12 | 8-slots, 1-row, socket size up to 18mm | 22347 |
| MSTKN-P-P14-HM-ETH-M12 | 4-slots, socket size up to 48mm | 22348 |

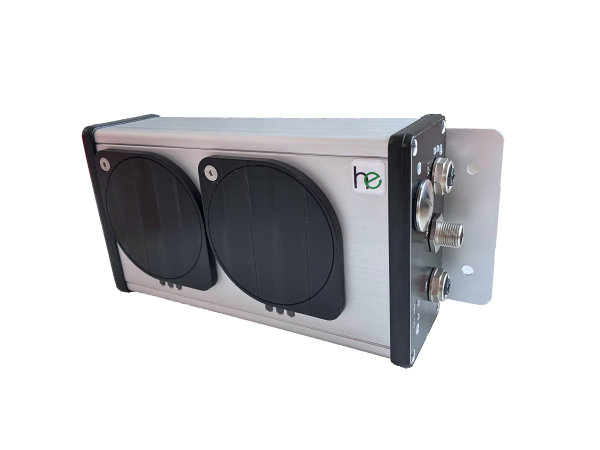

| MSTKN-H-Q12-HM-ETH-M12 | 8-slots, 1-row, socket size up to 70mm | 22362 |

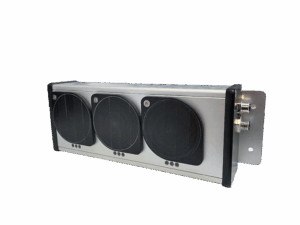

| MSTKN-H-Q13-HM-ETH-M12 | 3-slots, 1-row, socket size up to 70 mm | 22340 |

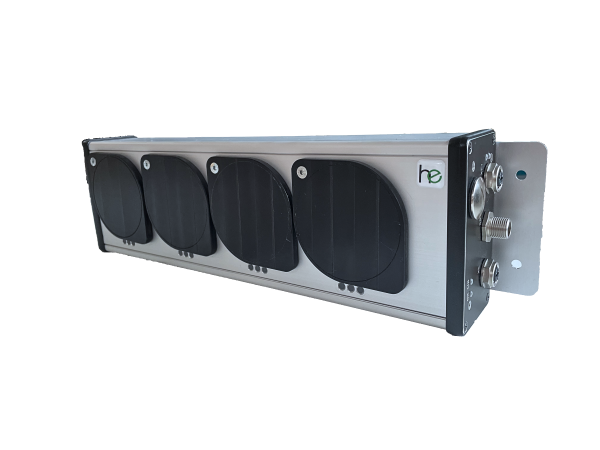

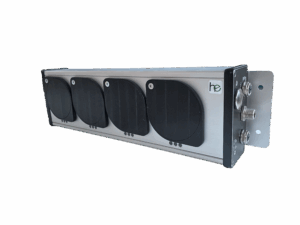

| MSTKN-H-Q14-HM-ETH-M12 | 4-slots, 1-row, socket size up to 70 mm | 22374 |

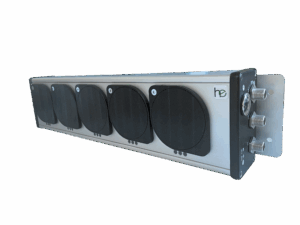

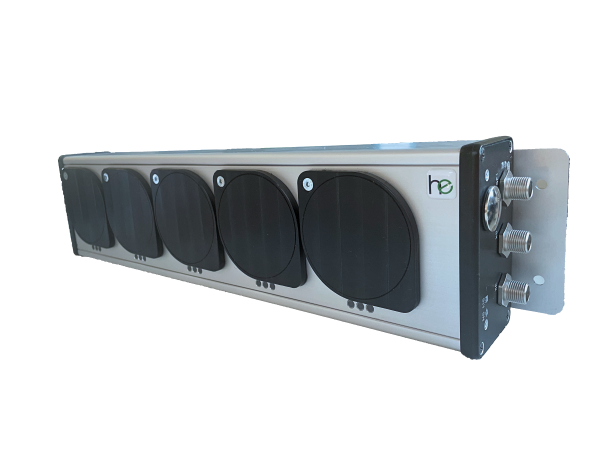

| MSTKN-H-Q15-HM-ETH-M12 | 5-slots, 1-row, socket size up to 70mm | 22376 |
Cable | Beschreibung: | item number |
| Cable MSTKN Profinet / Ethernet Standard | M12M ↔ M12M / D-codiert / 4 p. L = 0,5 m | 111350 |
| Cable MSTKN Profinet / Ethernet Standard | M12M ↔ M12M / D-codiert / 4 p. L = 1 m | 110230 |
| Cable MSTKN Profinet / Ethernet Standard | M12M ↔ M12M / D-codiert / 4 p. L = 2 m | 110231 |
| Cable MSTKN Profinet / Ethernet Standard | M12M ↔ M12M / D-codiert / 4 p. L = 3 m | 110232 |
| Cable MSTKN Profinet / Ethernet Standard | M12M ↔ M12M / D-codiert / 4 p. L = 5 m | 110233 |
| Cable MSTKN Profinet / Ethernet Standard | M12M ↔ M12M / D-codiert / 4 p. L = 10 m | 111275 |
| Cable MSTKN Profinet / Ethernet Standard | M12M ↔ M12M / D-codiert / 4 p. L = 15 m | 111245 |
| MSTKN Profinet / Ethernet high-flex cable | M12M ↔ M12M / D-codiert / 4 p. L = 5 m | 22400140 |
| MSTKN Profinet / Ethernet cable | M12M ↔ RJ45 / D-codiert / 4 p. L = 2 m | 1440625 |
| MSTKN Profinet / Ethernet cable | M12M ↔ RJ45 / D-codiert / 4 p. L = 5 m | 1440627 |
| MSTKN Profinet / Ethernet cable | M12M ↔ RJ45 / D-codiert / 4 p. L = 10 m | 1440630 |
| MSTKN Profinet / Ethernet cable | M12M ↔ RJ45 / D-codiert / 4 p. L = 15 m | 1440631 |
Zubehör und Ersatzteile | Description | item number |
| Programming and diagnostic adapter | USB-RS485 M12-Adapter L = 1,7 m | 222252 |
| MSTKN-H-Sxx-ZS | POM insert plug H 30 mm Ø 40 mm | 509030 |
| MSTKN-H-Sxx-ZS-100 | Insert plug made of POM H 100 mm Ø 40 mm | 33301 |
| MSTKN-H-Qxx-ZS-70 | POM insert plug H 40 mm Ø 70 mm | 33301 |
| MSTKN-H-T18-ZS | Insert block made of POM for MSTKN T18 | 509031 |
| MSTKN-H-P-ZS | Replacement prismatic slider made of POM | 509020 |
| Terminating resistor M12M | M12M | 509096 |
