Overview of Ethernet

Product overview > (Hardware) Socket trays > Ethernet

S14_ETHS24_ETHQ12_ETHQ13_ETHT18_ETH
ZurückWeiter

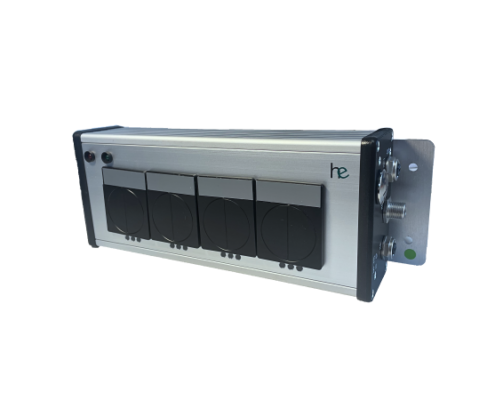

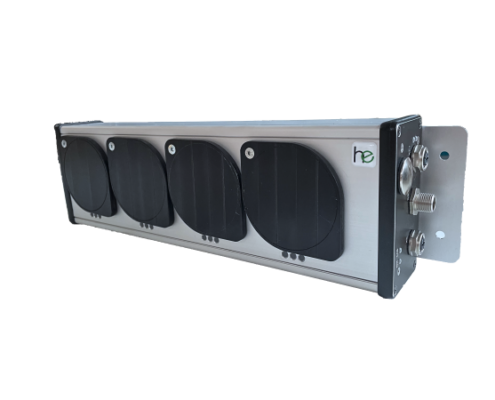

MSTKN-H-S14-HM-ETH-M12

The 4-slots Socket Trays was developed for use in industrial environments Socket Trays was developed for use in industrial environments. It is compatible with all common screwdriving systems and Control systems. can be used. The connection to the respective screw system is made via a 25-pin DSUB connector or a coded M12 circular connector, depending on the variant selected. The robust aluminum housing can withstand even the toughest conditions at the workplace. The socket tray has an internal bus system so that each main module can be operated with several extension modules.

Data Sheets CAD Modelle Documentation Maßzeichnung downloads

Feature Overview

The plug-in socket operates at a data rate of 100Mb/s. The Open Modbus TCP/UDP interface is
compatible with class 0 with some class 2 extensions (FC23, read/write, multiple registers). The device has
two words of process data are available (one input and one output register).

Further functions

Group functions and tool recognition can be parameterized using the programming cable and the software supplied.

You can find detailed information here: Programming cable

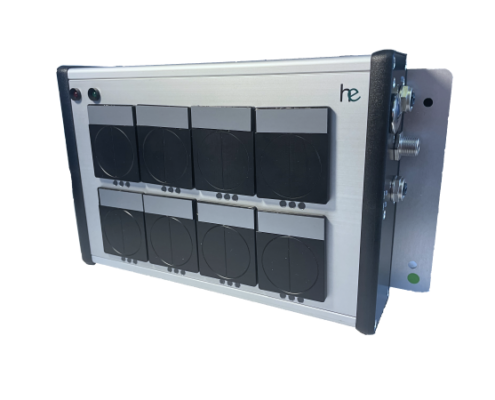

MSTKN-H-S24-HM-ETH-M12

The 8-slots Socket Trays was developed for use in industrial environments. It is compatible with all common screwdriving systems and Control systems. can be used. The connection to the respective screw system is made via a 25-pin DSUB connector or a coded M12 circular connector, depending on the variant selected. The robust aluminum housing can withstand even the toughest conditions at the workplace. The socket tray has an internal bus system so that each main module can be operated with several extension modules.

Data Sheets CAD Modelle Documentation Maßzeichnung downloads

Feature Overview

The plug-in socket operates at a data rate of 100Mb/s. The Open Modbus TCP/UDP interface is
compatible with class 0 with some class 2 extensions (FC23, read/write, multiple registers). The device has
two words of process data are available (one input and one output register).

Further functions

Group functions and tool recognition can be parameterized using the programming cable and the software supplied.

You can find detailed information here: Programming cable

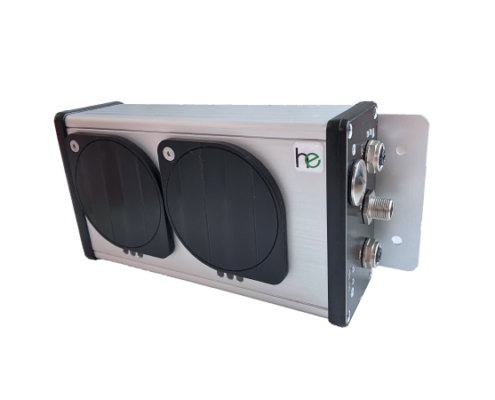

MSTKN-H-Q12-HM-ETH-M12

The Q12 Socket Trays was developed for use in industrial environments. It is compatible with all common screwdriving systems and Control systems. can be used. The connection to the respective screw system is made via a 25-pin DSUB connector or a coded M12 circular connector, depending on the variant selected. The robust aluminum housing can withstand even the toughest conditions at the workplace. The socket tray has an internal bus system so that each main module can be operated with several extension modules.

Data Sheets CAD Modelle Documentation Maßzeichnung downloads

Feature Overview

The plug-in socket operates at a data rate of 100Mb/s. The Open Modbus TCP/UDP interface is
compatible with class 0 with some class 2 extensions (FC23, read/write, multiple registers). The device has
two words of process data are available (one input and one output register).

Further functions

Group functions and tool recognition can be parameterized using the programming cable and the software supplied.

You can find detailed information here: Programming cable

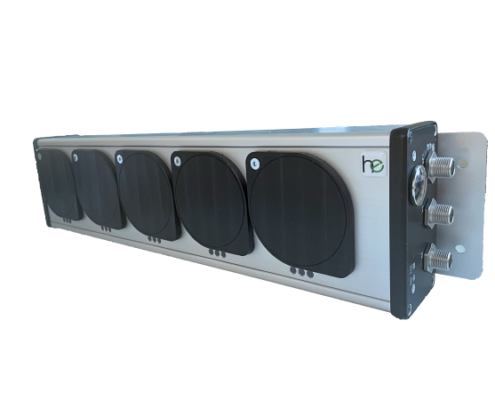

MSTKN-H-Q13-HM-ETH-M12

The Q13 Socket Trays was developed for use in industrial environments. It is compatible with all common screwdriving systems and Control systems. can be used. The connection to the respective screw system is made via a 25-pin DSUB connector or a coded M12 circular connector, depending on the variant selected. The robust aluminum housing can withstand even the toughest conditions at the workplace. The socket tray has an internal bus system so that each main module can be operated with several extension modules.

Data Sheets CAD Modelle Documentation Maßzeichnung downloads

Feature Overview

The plug-in socket operates at a data rate of 100Mb/s. The Open Modbus TCP/UDP interface is
compatible with class 0 with some class 2 extensions (FC23, read/write, multiple registers). The device has
two words of process data are available (one input and one output register).

Further functions

Group functions and tool recognition can be parameterized using the programming cable and the software supplied.

You can find detailed information here: Programming cable

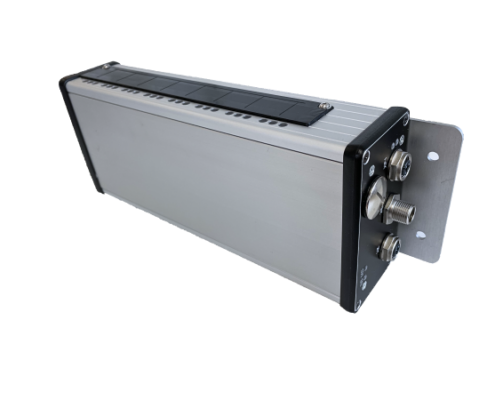

MSTKN-H-T18-HM-ETH-M12

The T18 Stecknussköcher was developed for use in industrial environments. It is compatible with all common screwdriving systems and Control systems. can be used. The connection to the respective screw system is made via a 25-pin DSUB connector or a coded M12 circular connector, depending on the variant selected. The robust aluminum housing can withstand even the toughest conditions at the workplace. The socket tray has an internal bus system so that each main module can be operated with several extension modules.

Data Sheets CAD Modelle Documentation Maßzeichnung downloads

Feature Overview

The plug-in socket operates at a data rate of 100Mb/s. The Open Modbus TCP/UDP interface is
compatible with class 0 with some class 2 extensions (FC23, read/write, multiple registers). The device has
two words of process data are available (one input and one output register).

Further functions

Group functions and tool recognition can be parameterized using the programming cable and the software supplied. The implemented diagnostic functionality allows the user to query the status of each individual slot via Modbus.

You can find detailed information here: Programming cable

Available versions

Socket Trays
type Description
Main module 24V EA Parallel interface
Main module 24V EA parallel interface, Open Protocol variant
Main module Profinet slave fieldbus interface
Main module Profibus slave fieldbus interface
Main module Ethernet/IP slave fieldbus interface
Main module EtherCAT fieldbus interface
extension module Modbus slave fieldbus interface
